Universal Stainless Steel Cable Tie in 201/304/316 with 10mm Width for Versatile Cable Management and Bundling

  • 1
  • 2
  • 3

Width : 10mm

Length Options : 400mm to 5000mm

Place of Origin : China

Brand Name : LKS

Certification : RoHs

Model Number : LKS colorized Universal type stainless steel clamping cable tie

MOQ : 10000pcs

Price : enquiry for latest price

Packaging Details : 100PCS/bag,Other packaging methods under requirements

Delivery Time : 10-15days

Payment Terms : T/T,Western Union

Supply Ability : 100000pcs

Type : Universal type

Material : 201/304/316 stainless steel

Thickness : 0.2mm

Max Bundle Dia : 110mm to 1500mm

Surface Treatment : spray (spread with plastics or plastic-coating)

Contact Now

Universal Stainless Steel Cable Tie available in 201 304 and 316 stainless steel for versatile cable management and bundling

LKS Colorized Universal Stainless Steel Clamping Ties

  • Material: 201/304/316 stainless steel
  • Width: 10mm
  • Thickness: 0.2mm
  • Usage: for binding communication cables, labels, boats, mining industry, advertisement, industry etc.
  • Surface Treatment: spray (spread with plastics or plastic-coating)

Specifications:

Model No. Width(mm) Length(mm) Thickness(mm) Max. Bundle Dia.
Inch mm Inch mm Inch mm Inch mm
LKS-400 0.4 10 15.7 400 0.008 0.2 4.3 110
LKS-500 19.7 500 5.4 138
LKS-600 23.6 600 7.1 180
LKS-700 27.6 700 8.3 210
LKS-800 31.5 800 9.4 240
LKS-900 35.4 900 10.6 270
LKS-1000 39.4 1000 11.8 300
LKS-1100 43.3 1100 13.4 340
LKS-1200 47.2 1200 14.6 370
LKS-1300 51.2 1300 15.7 400
LKS-1400 55.1 1400 16.9 430
LKS-1500 59 1500 18.1 460
LKS-2000 78.7 2000 23.6 600
LKS-3000 118.1 3000 36.2 920
LKS-4000 157.5 4000 47.2 1200
LKS-5000 196.9 5000 59 1500

Universal Stainless Steel Cable Tie in 201/304/316 with 10mm Width for Versatile Cable Management and Bundling

Universal Stainless Steel Cable Tie Operating Manual

Universal Stainless Steel Cable Tie in 201/304/316 with 10mm Width for Versatile Cable Management and Bundling

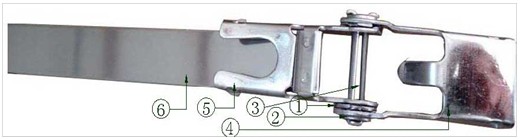

Parts Name
①Plum blossom Washer ⑤Small bracket
②Round Washer ⑥Stainless steel band
③Spindle Attention:
④Big bracket Please wear gloves when operating
  1. Step 1:Insert the tail of ⑥ stainless steel band into the slot of ③spindle.

Universal Stainless Steel Cable Tie in 201/304/316 with 10mm Width for Versatile Cable Management and Bundling

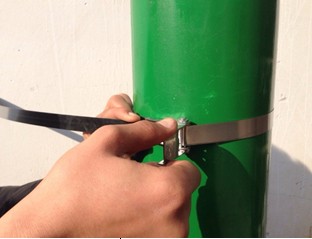

  1. Step 2:Hold ⑤bracket by left hand,tighten up the ⑥steel band by right hand.

Universal Stainless Steel Cable Tie in 201/304/316 with 10mm Width for Versatile Cable Management and Bundling

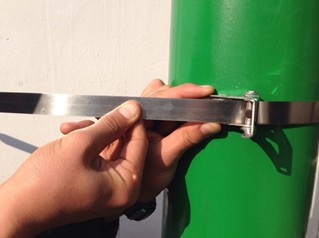

  1. Step 3:Hold the ⑤small bracket by left hand,pushing the ④big bracket back and forth,until the steel band strapped tightly.

Universal Stainless Steel Cable Tie in 201/304/316 with 10mm Width for Versatile Cable Management and Bundling

  1. Step 4:After strapped tightly,hold the steel buckle by left hand,take hammer by right hand,hammering the ④small bracket and ⑤big bracket down.

Universal Stainless Steel Cable Tie in 201/304/316 with 10mm Width for Versatile Cable Management and Bundling

  1. Step5:At the end, remove the rest ⑥steel band by scissors.

Universal Stainless Steel Cable Tie in 201/304/316 with 10mm Width for Versatile Cable Management and Bundling

Universal Stainless Steel Cable Tie in 201/304/316 with 10mm Width for Versatile Cable Management and Bundling
